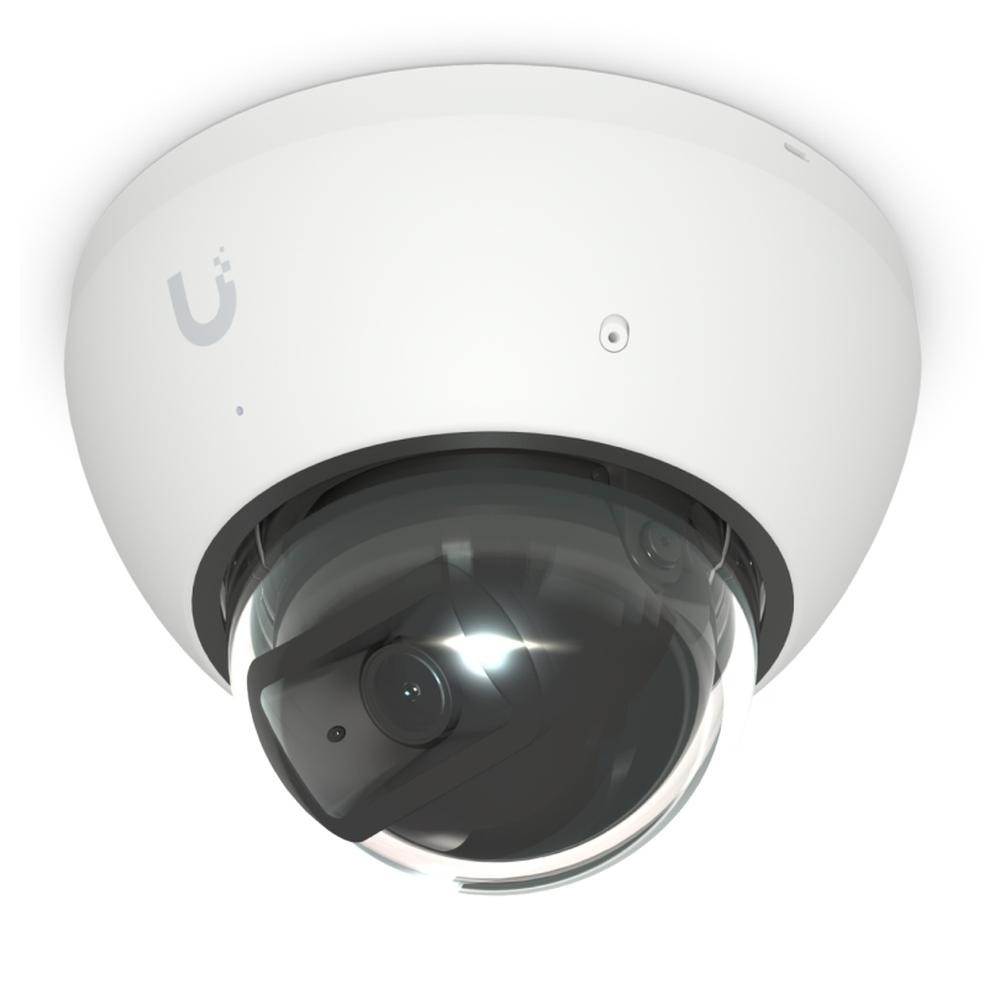

Ubiquiti UVC-AI-Dome-W UniFi Video Camera AI Dome White
Product Highlights
Model#: UVC-AI-Dome-W
Sku: IT5040
Out of stock
Your Price: N/A
MODEL: UVC-AI-Dome-W
All-weather, vandal-proof 4K PoE dome camera with enhanced AI capabilities and long-range IR night vision.
4K (8MP) video resolution
Ultra-wide viewing angle (109.9°)
40 m (131 ft) IR night vision
Advanced AI: Face and license plate recognition
Record audio with an integrated microphones
Micro SD card support for edge recording*
Connect and power using PoE
Weatherproof (outdoor exposed)
| Mechanical | |
|---|---|
| Dimensions | Ø118 x 90.8 mm (Ø4.6 x 5.5") |
| Weight | 700 g (1.5 lb) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Weatherproofing | IP66 |
| Resistance | IK10 |
| Cable jacket enclosure dimensions | Ø20 x 70.6 mm (0.8 x 2.8") |
| Cable jacket enclosure material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Cable length | 30 cm (1 ft) |
| Cable diameter | 4.5 mm (0.2") |
| Cable jacket material | Thermoplastic elastomer |
| Cable connector type | RJ45 |
| Optics | |
| Sensor | 1/1.8" 8MP |
| Lens | Fixed focal length |
| View angle | H: 109.9°, V: 56.7°, D: 134.1° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| IR distance | 40 m (131 ft) |
| Video | |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Max. power consumption | 10W |
| Power method | PoE |
| Supported voltage range | 42.5–57V DC |
| LED | R/G/B/W |
| Button | Factory reset |
| Mounting | Ceiling, arm, wall, pendant mount, junction box |
| Ambient operating temperature | -30 to 50° C (-22 to 122° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | No |
| Software | |
| Web application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
