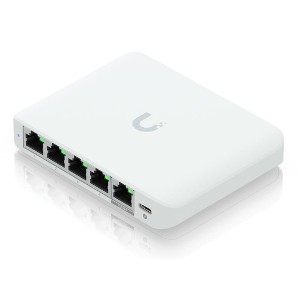

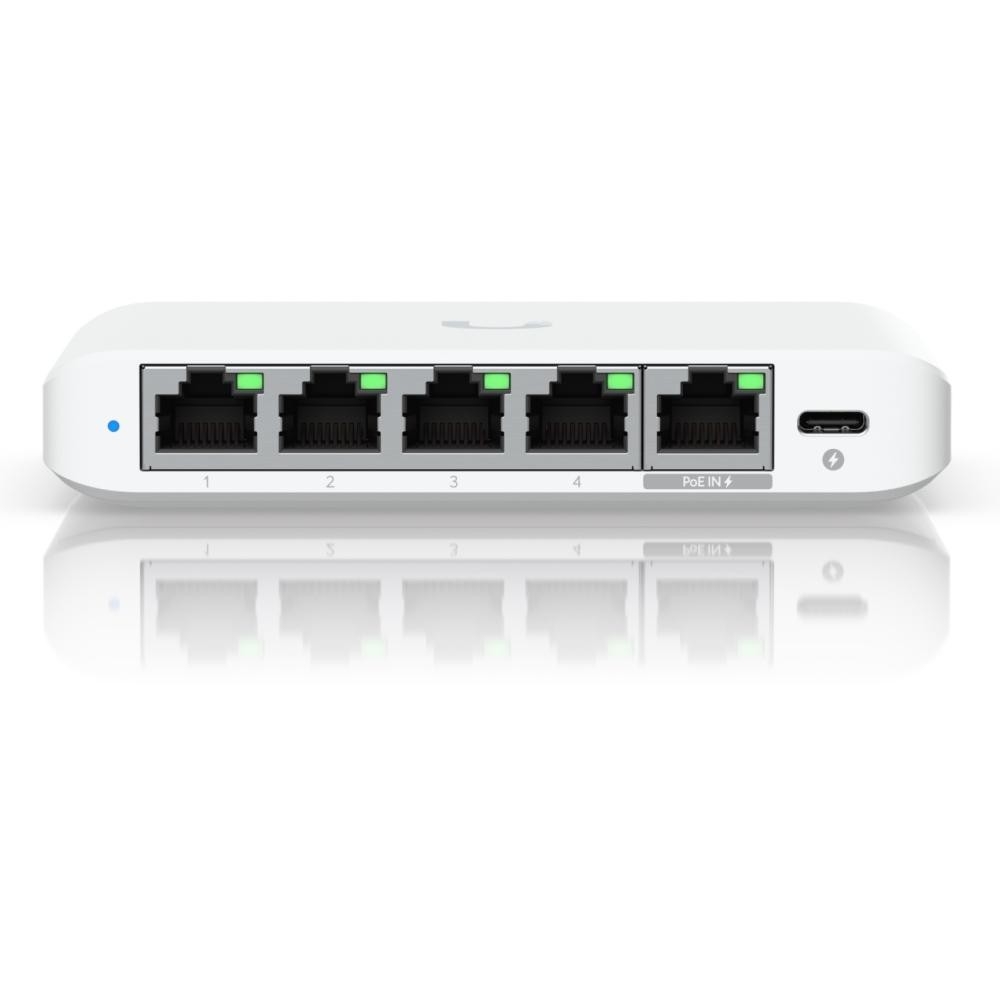

Ubiquiti USW-Flex-2.5G-5 UniFi Switch Flex Mini 2.5G
Model#: USW-Flex-2.5G-5
Sku: IT5042
MSRP: $69.99
In Stock
Your Price: $69.99
MODEL: USW-Flex-2.5G-5
Ubiquiti Unifi Flex Mini 2.5GbE 5-Port
Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.
Features:
- (4) 2.5 GbE ports
- (1) 2.5 GbE PoE input port for power
- Optional powering with included 5V, 1A USB-C adapter
Specifications USW-Flex-2.5G-5
| Mechanical | |
| Dimensions | 117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8") |
| Weight | 206 g (0.45 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (5) 1/2.5 GbE RJ45 ports |
| Total non-blocking throughput | 12.5 Gbps |
| Switching capacity | 25 Gbps |
| Forwarding rate | 18.6 Mpps |
| Power method | (1) AC power adapter, 5V DC, 1A (1) PoE (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-) |
| Power supply | External AC/DC adapter UniFi PoE switch |
| Supported voltage range | AC/DC input: 5V DC PoE input: 44—57V DC |
| Max. power consumption | AC/DC input: 5W PoE input: 6.4W |
| Button | Factory reset |
| Ambient operating temperature | -20 to 45° C (-4 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | STP / RSTP with priorities and port-level disable Port isolation Storm control Port mirroring Multicast / broadcast rate limiting Flow control Jumbo frames Egress rate limit |
| Layer 3 features | -- |
| LEDs | |
| System | (1) Blue/white: power Blinking white: bootup in progress Blinking blue: firmware upgrading Steady white: factory defaults; unit is awaiting adoption Steady blue: unit is adopted |
| Ethernet | (5) Green: link/activity |
| Application Requirements | |
| UniFi Network | Version 8.4.62 and later |
