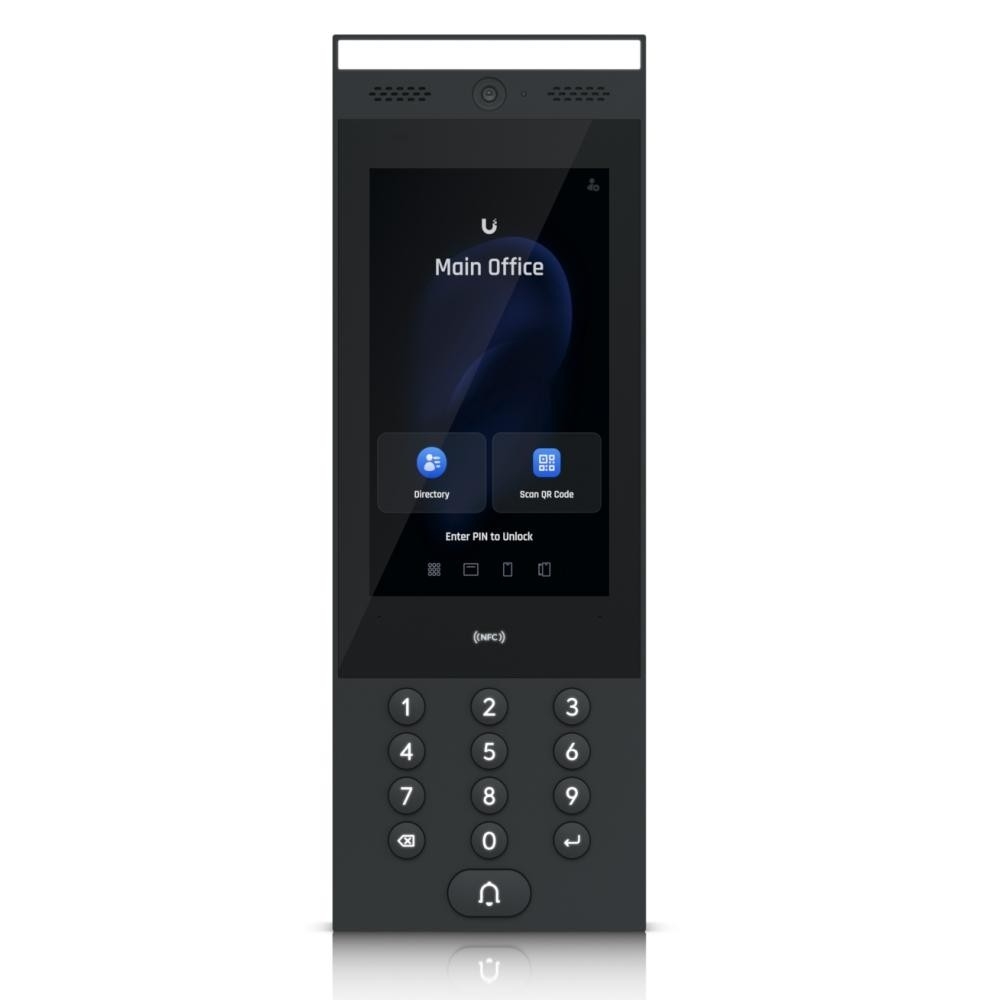

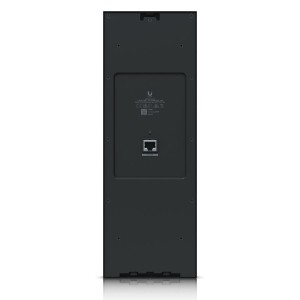

Ubiquiti UA-Intercom Indoor/Outdoor Intercom Terminal
Model#: UA-Intercom
Sku: IT5058
MSRP: $489.99
In Stock
Your Price: $489.99
MODEL: UA-Intercom
UniFi Access Intercom
The Ubiquiti Intercom (UA-Intercom) indoor/outdoor intercom terminal, a comprehensive solution for effectively managing entry requests in both residential and commercial settings.
Designed for seamless operation in various environments, this terminal facilitates efficient communication and access control. Whether installed indoors or outdoors, it ensures reliable performance, enhancing security and convenience for residents, tenants, and visitors alike.
Experience the versatility and effectiveness of this intercom terminal, tailored to meet the diverse needs of modern building management.
Features:
- Unlock using an NFC card, UniFi Identity mobile app, PIN code or QR code
- Directory and doorbell to request entry
- Pairs with multiple UniFi Intercom Viewers for remote access control
- Connects to UniFi Access Hub series using PoE
- Weatherproof (outdoor exposed -30 to 60° C)
Specifications UA-Intercom
| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| Weight | Device: 965 g (2.1 lb) Bracket: 445 g (1 lb) |
| Enclosure material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount material | Powder-coated stainless steel |
| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) Surface angle mount, flush mount (Optional) Sunshield kit (Optional) |
| Weatherproofing | IP65 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Connectivity | Bluetooth 4.2 NFC |
| Power method | PoE |
| Supported voltage range | 48V DC |
| Max. power consumption | 13W |
| ESD/EMP protection | Air: ±15kV, contact: ±8kV |
| Sensors | Proximity sensor ALS sensor |
| Camera | 3264 x 2448, 8 MP H: 79.4°, V: 97.5°, D: 118.2° |
| Display | 177 mm (7") diagonal |
| Resolution | 1024 x 600 (16:9) |
| Display luminance | Max. 1000 nits (typical) |
| Touch screen technology | Capacitive multi-touch |
| Microphone | Yes |
| Speaker | (1) 4 ohm, 2W |
| LEDs | (1) LCM low temperature indicator: orange (LCM turned off when it’s below -25° C but the system funtions normally) (1) LED floodlight (13) Keypad LED backlight |
| Button | (1) Factory-reset |
| NFC frequency | 13.56 MHz |
| NFC read range | < 30 mm |
| NFC standards | ISO 14443A, 14443B, 15693 |
| NFC technology | NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Ambient operating temperature | Device: -30 to 60° C (-22 to 140° F) Display:* -25 to 60° C (-13 to 140° F) *The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v 1.0.66) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Management application | UniFi Access: Version 1.22.17 and later |
