WAVE-PICO-US

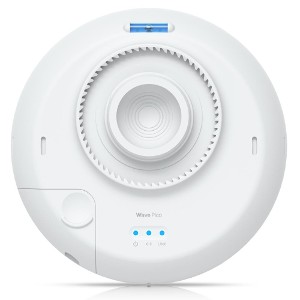

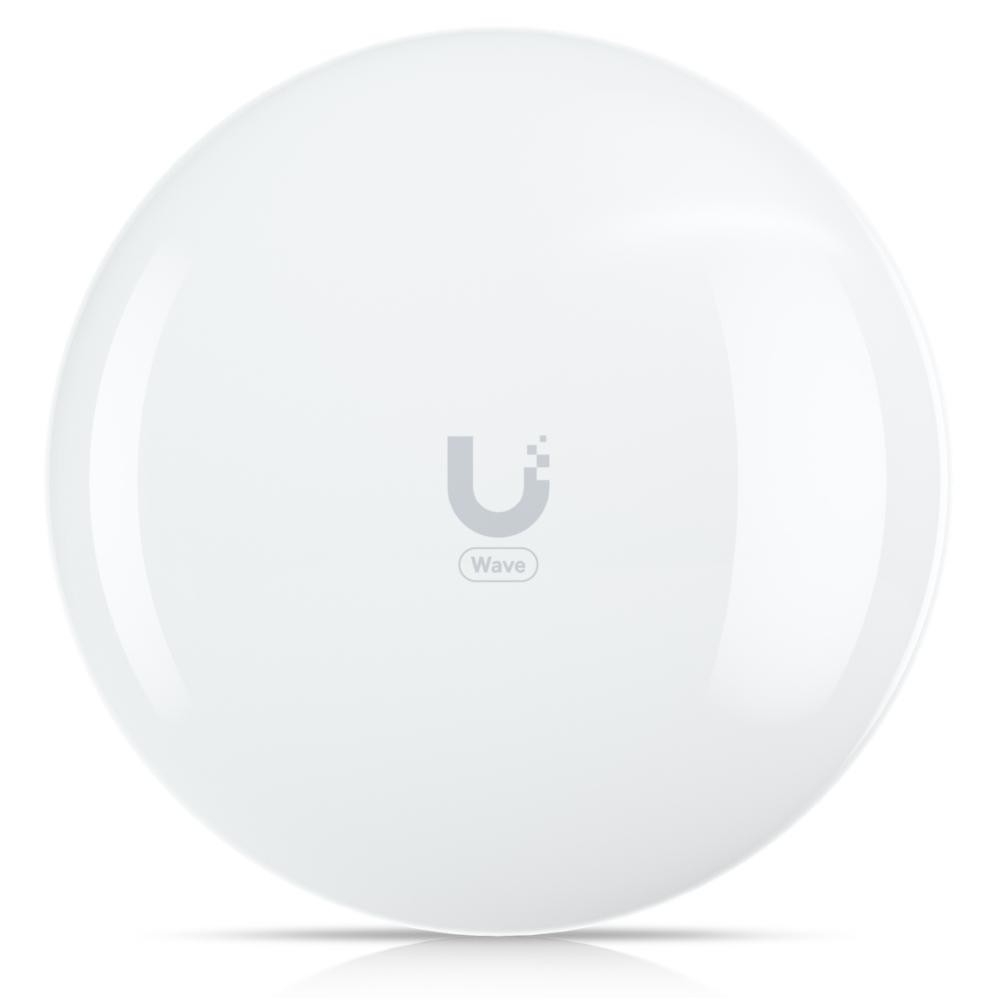

WAVE-PICO-US picture 3

Ubiquiti


Ubiquiti WAVE-PICO-US - UISP Wave Pico 60 GHz PtMP Station - US VERSION



Product Highlights
  • Max. link range: Wave AP: 1.3 km, Wave AP Micro: 0.9 km
  • Max. throughput: 2 Gbps (1 Gbps duplex)
  • 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
  • (1) GbE RJ45 port
  • Integrated Bluetooth
  • Model#: WAVE-PICO-US

    Sku: IT5066



    MSRP: $209.99

    In Stock

    Your Price: $209.99






    MODEL: WAVE-PICO-US

    Ubiquiti Networks Wave Pico

    Lightweight, compact 60 GHz PtMP station powered by Wave Technology.



    Features:

    • Max. link range: Wave AP: 1.3 km, Wave AP Micro: 0.9 km
    • Max. throughput: 2 Gbps (1 Gbps duplex)
    • 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
    • (1) GbE RJ45 port
    • Integrated Bluetooth

    Specifications Wave-Pico

    Dimensions Ø152.1 x 55.8 mm (Ø6 x 2.2")
    Weight Without mount: 347 g (12.2 oz) With mount: 409 g (14.4 oz)
    Enclosure material UV stabilized polycarbonate
    Mount material UV stabilized polycarbonate
    Pole mount diameter 20 to 53.1 mm (0.8 to 2.1") on pipe outer diameter
    Wind loading 31.3 N at 200 km/h (7 lbf at 125 mph)
    Weatherproofing IPX6
    Hardware
    Processor Dual-core ARM® Cortex®-A53 at 1 GHz
    Memory DDR3L 512 MB
    Networking interface (1) GbE RJ45 port
    Max. power consumption 10W
    Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8 -) Passive PoE 2-pairs (4, 5+; 7, 8 -) , for 44–54V DC only
    Power supply 48V DC, 0.5A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch
    Supported voltage range 44–54V DC
    GPS No
    Button Factory reset
    LEDs Power, Ethernet, link
    Operating temperature -40 to 60° C (-40 to 140° F)
    Operating humidity 5 to 95% noncondensing
    Certifications FCC, IC, CE
    Software
    Operating mode PtMP station, PtP
    Ubiquiti specific features Wave AI, discovery protocol
    Services UISP, ping watchdog, NTP client, SNMP
    Tools Antenna alignment, discovery utility, ping, trace route, speed test
    Network Bridge/Router* mode
    *Router is available in PtMP station mode only.
    Application requirements UISP web: Version 2.4.61 and later
    UISP mobile iOS™: Version 2.32.0 and later
    UISP mobile Android™: Version 2.31.9 and later
    System
    Total throughput 2 Gbps (1 Gbps duplex)
    Max. range Up to 1.3 km (Wave AP)
    Up to 0.9 km (Wave AP Micro)
    Encryption WPA2-PSK (AES)
    RF
    Operating frequency* 57–71 GHz *Depends on regulatory region.
    Channel bandwidth 2160, 1080 MHz
    Operating channels* 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region.
    Modulation 16QAM, QPSK
    Antenna gain 27.7 dBi
    Polarization Vertically linear
    Beamwidth Azimuth: 3 dB 6°
    Elevation: 3 dB 6°
    Back-Up RF
    WiFi standard 802.11ax (WiFi 6)
    Operating frequency* US/CA U-NII-1 5150 - 5250 MHz
    U-NII-2A 5250 - 5350 MHz
    U-NII-2C 5470 - 5725 MHz
    U-NII-3 5725 - 5850 MHz
    Worldwide 5180 - 5875 MHz
    *Depends on regulatory region.
    Channel bandwidth 20, 40, 80 MHz
    Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
    Antenna gain 9 dBi
    Polarization Dual-linear
    Beamwidth Azimuth: 3 dB 50°
    Elevation: 3 dB 50°
    Cross-pol isolation 15 dB
    LEDs
    Power Flashing white: bootup in progress
    White: not connected to UISP application
    Blue: connected to UISP application
    Flashing blue: locate in progress
    Blue/white: firmware upgrade in progress
    Ethernet Flashing blue: Ethernet traffic detected
    Links White: 5 GHz link
    Blue: 60 GHz link
