U-POE++

Ubiquiti

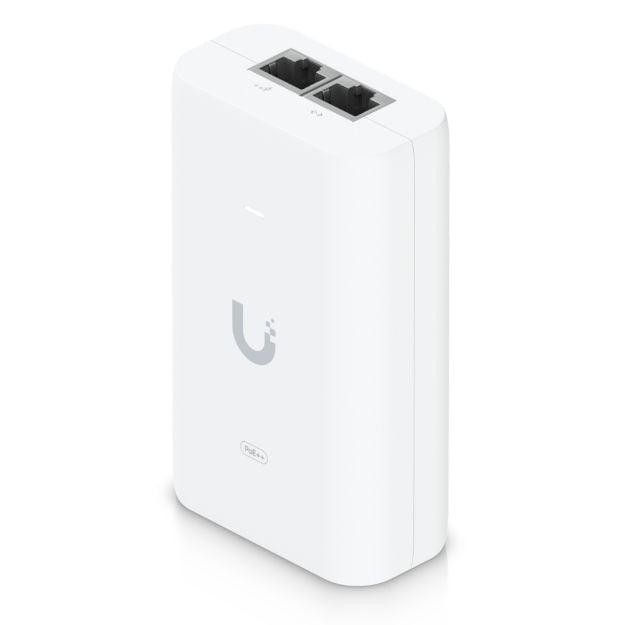

Ubiquiti Networks U-PoE++ UniFi PoE++ Adapter


Model#: U-POE++

Sku: IT5069



MSRP: $35.00

In Stock

Your Price: $35.00






MODEL:  U-PoE++

UniFi PoE++ Adapter

This UniFi PoE++ Adapter is designed to power PoE devices from Ubiquiti Networks. This unit will support devices that require up to 60W of PoE. It provides surge, peak pulse, and overcurrent protection to ensure that your connected PoE devices remain operational.

Features:

  • Delivers 60W of PoE++
  • Powers Ubiquiti PoE Devices
  • 48 VDC at 1.25A Output Voltage
  • 100 to 240 VAC at 50/60 Hz
  • Surge & Clamping Protection
  • Peak Pulse & Overcurrent Protection
  • Shielded RJ45 ports
  • LED indicator for status monitoring
  • Compatible with Ubiquiti Networks PoE devices

Specifications U-PoE++

Dimensions 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight 210 g (0.46 lbs.)
Output voltage 48V DC @ 1.25A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability No
Reset button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 1.3A @ 120V AC
0.75A @ 230V AC
Inrush current <100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency 85+%
Output ripple 1% max.
Switching frequency 65 kHz
Line regulation ≤ 1%
Load regulation ≤ 3%
2-pair powering No
4-pair powering Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC connector IEC-320 C6
Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Power method Universal AC input, 100—240V AC, 50/60 Hz
Power supply AC/DC
Supported voltage range 100—240V AC
Max. PoE+ wattage per port by PSE 60W
Ambient operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
