USW-ULTRA-210W

Ubiquiti


Ubiquiti USW-ULTRA-210W, A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.



Product Highlights
  • (7) GbE PoE+ output ports
  • (1) GbE port with optional PoE++ input*
  • PoE budget of up to 202W.
  • 202W PoE availability with the included AC power adapter
  • Model#: USW-ULTRA-210W

    Sku: IT5081

    Out of stock

    Your Price: N/A


    MODEL: USW-Ultra-210W

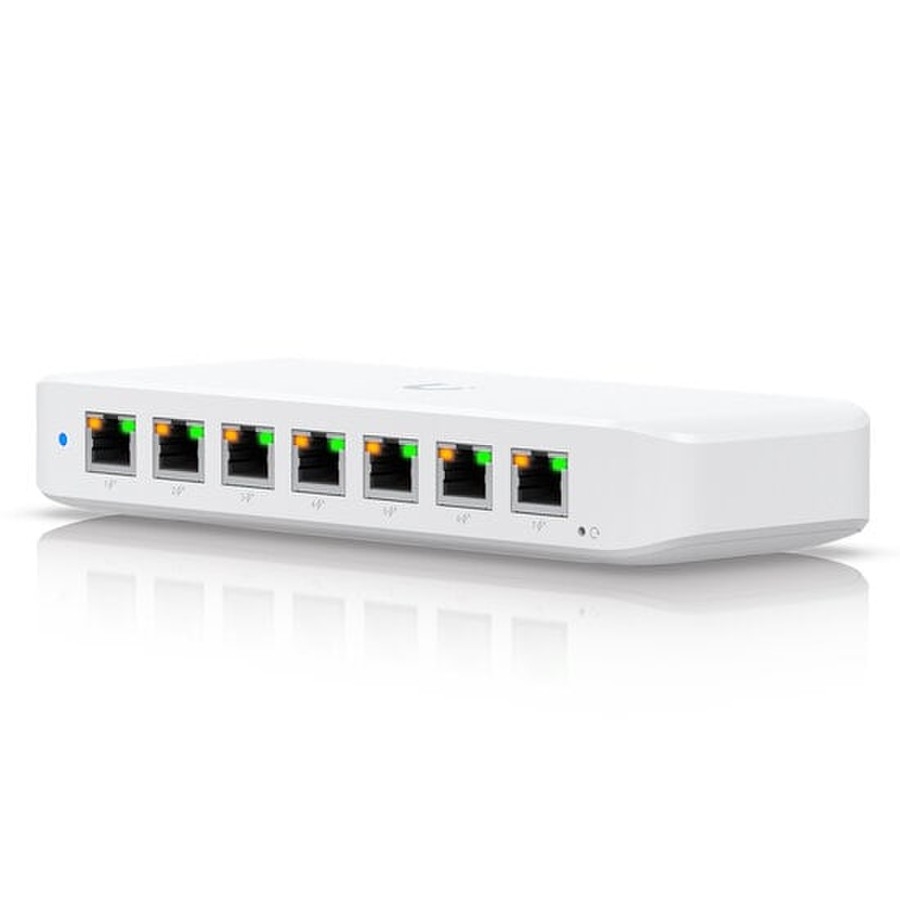

    A compact Ultra 210W, Layer 2, 8-port GbE PoE switch with versatile mounting options.

    With a PoE budget of 202W and flexible power options, this switch provides unparalleled versatility for powering your network devices. Boasting seven GbE PoE+ output ports and one GbE PoE++ input port, along with a total non-blocking throughput of 8 Gbps, it ensures seamless data transmission in any environment.

    With the USW-Ultra-210W, streamline your network management through a unified control plane. Its intuitive interface facilitates robust configuration, control, and monitoring, allowing for seamless operation. Benefit from remote firmware upgrades, ensuring your system remains up-to-date with the latest features and security patches. Whether managing users or guests, this switch offers comprehensive support, including guest portal and hotspot functionalities, enhancing network accessibility and security.

    The compact and lightweight design of the USW-Ultra-210W makes it ideal for space-constrained environments without compromising on performance, providing an efficient solution for both small office spaces and larger enterprise networks alike.





    Specifications USW-Ultra-210W (202W)

    Mechanical
    Dimensions 203 x 76 x 33 mm (8" x 3" x 1.3")
    Weight Device: 320 g (11.3 oz)
    Wall mount: 45 g (1.6 oz)
    210W adapter: 770 g (1.7 lb)
    Enclosure material Polycarbonate
    Hardware
    Management interface Ethernet In-Band
    Networking interface (8) GbE RJ45 ports
    PoE interface (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
    (1) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
    Total non-blocking throughput 8 Gbps
    Switching capacity 16 Gbps
    Power method (1) 54V, 3.9A power adapter (Included)
    PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
    Power Supply 54V, external, 3.9A/210W
    Supported voltage range 44—57V DC
    Max. power consumption 9W with PoE input (Excluding PoE output)
    8W with AC adapter input (Excluding PoE output)
    Total available PoE PoE++ input: 42W
    PoE+ input: 16W
    60W PoE adapter input: 42W
    60W AC adapter input: 52W
    210W AC adapter input: 202W*
    *At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)
    Max. PoE+ wattage per port by PSE 30W
    Button Factory reset
    Ambient operating temperature PoE++ input: -30 to 60° C (-22 to 140° F)
    60W AC adapter input: -20 to 45° C (-4 to 113° F)
    210W AC adapter input: -20 to 60° C (-4 to 140° F)
    Ambient operating humidity 10 to 90% noncondensing
    Certifications CE, FCC, IC
    Switching Features
    Layer 2 features Port isolation
    Storm control
    Port mirroring
    Multicast / broadcast rate limiting
    Flow control
    Jumbo frames
    Egress rate limit
    Layer 3 features -
    LEDs
    System Status
    Ethernet PoE
    Link/activity
    UniFi Network Version 8.0.7 and later
