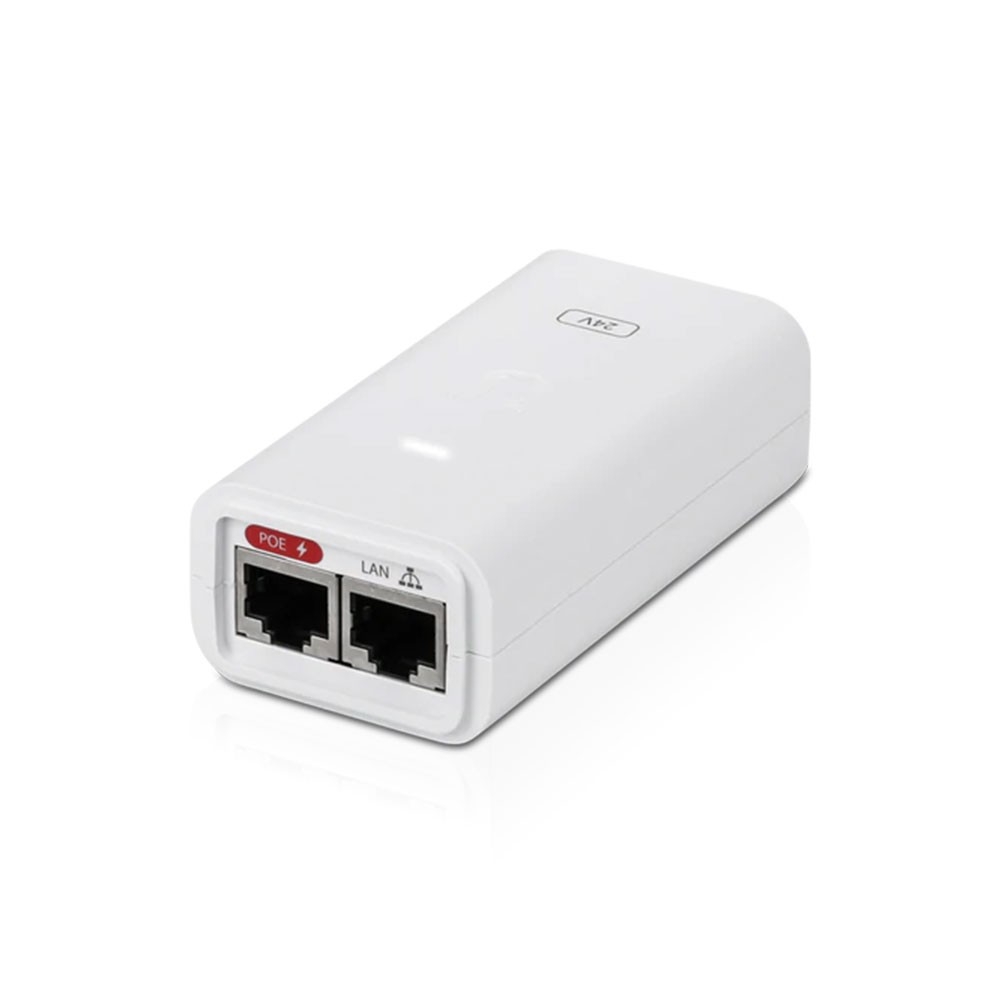

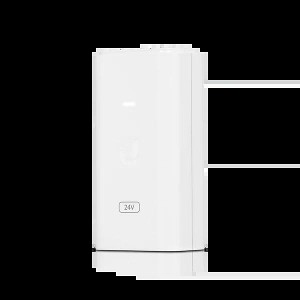

Ubiquiti Networks POE-24-12W-WH PoE Injector (24 VDC, 12W, White)
Model#: POE-24-12W-WH
Sku: IT5091
MSRP: $19.99
In Stock
Your Price: $19.99
MODEL: POE-24-12W-WH
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
- Dimensions
- 87 x 44 x 29 mm (3.43 x 1.73 x 1.14")
- Weight
- 92 g (3.25 g)
- Output Voltage
- 24VDC @ 0.5A
- LAN Activity Indicator
- No
- Gigabit LAN Port
- Yes
- Remote Reset Capability
- Yes
- Reset Button
- Yes
- Rated Voltage
- 100-240VAC @ 50/60Hz
- Input Current
- 0.3A @ 120VAC, 0.2A @ 240VAC
- Inrush Current
- <30A Peak @ 120VAC, <60A Peak @ 230VAC
- Efficiency
- 75+%
- Output Ripple
- 1% Max.
- Switching Frequency
- 50 kHz
- Line Regulation
- ≤ 3%
- Load Regulation
- ≤ 5%
- 2-Pair Powering
- Pins 4, 5 (+) and Pins 7, 8 (-)
- 4-Pair Powering
- –
- Operating Temperature
- 0 to 40° C (32 to 104° F)
- Storage Temperature
- -30 to 70°C (-22 to 158° F)
- Operating Humidity
- 35 to 95% Noncondensing
- AC Connector
- IEC-320 C6
- Data IN / POE
- RJ45 Shielded Socket
- Surge Protection
- Difference and Common Mode
- Clamping Protection
- 11V Data, 60V Power
- Max. Surge Discharge
- 1500A (8/20 μs) Power
- Peak Pulse Current
- 36A (10/1000 μs) Data
- Shunt Capacitance
- <5 pF data
- Response Time
- <1 ns
- Certifications
- CE, FCC, IC, UL
