EAH-8-US
EAH-8-US picture 3

Ubiquiti


Ubiquiti Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.


Product Highlights
  • • (8) Lock terminals (12V or Dry)
  • • (8+8) Inputs for request-to-exit devices and door position sensors
  • • (8) PoE ports for Access Readers
  • • (4) AUX terminals for chimes, sirens, or door openers
  • • (1) Battery backup input (32–48V)

    • Model#: EAH-8-US

    Sku: IT5100



    MSRP: $1,199.00


    Out of stock

    Your Price: $1,199.00

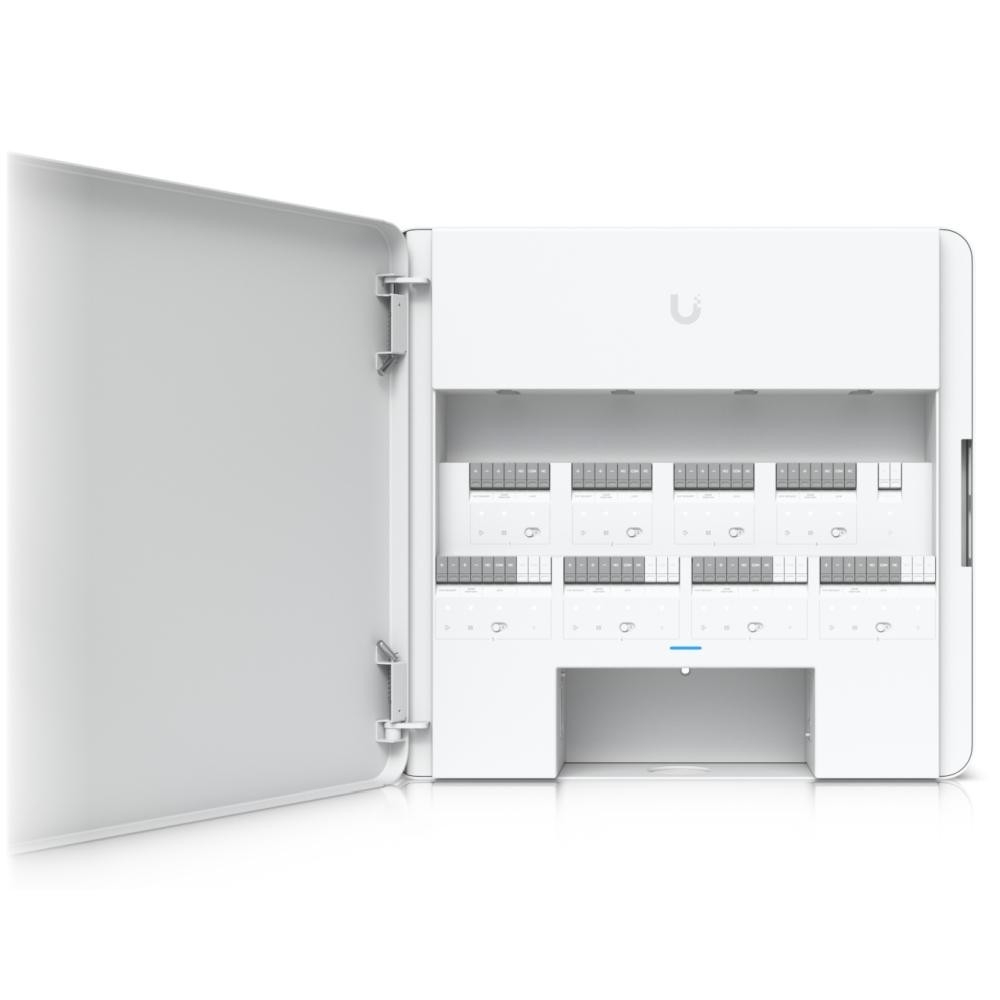

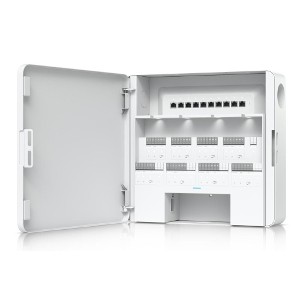

    The Ubiquiti UniFi Enterprise Access Hub [EAH-8] is an enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.

    • (8) Lock terminals (12V or Dry)
    • (8+8) Inputs for request-to-exit devices and door position sensors
    • (8) PoE ports for Access Readers
    • (4) AUX terminals for chimes, sirens, or door openers
    • (1) Battery backup input (32–48V)
    • Mechanical
      • Dimensions: 379 x 355 x 105 mm (15 x 14 x 4.1")
      • Weight: Device: 9.1 kg (20 lb)
      • Mount: 624 g (1.4 lb)
      • Enclosure material: SGCC housing with PC cover
      • Mounting material: SGCC wall mount plate
    • Hardware
      • Networking interface: (10) 10/100/1000 Base-T
      • Power method:
        • Universal input, 100–240V AC, Max. 4.4A, 50/60Hz
        • 32–48V DC Lead Acid Battery, Max. 7.5A @32V
      • Power supply: AC/DC, internal
      • Max. power consumption: 240W
      • PoE interface: (8) PoE (Pins 1, 2+; 3, 6-)
      • Voltage range PoE mode: 44–57V DC
      • Total available PoE: 60W
      • Max. PoE wattage per port: 15.4W
      • LEDs:
        • System: white/blue
        • Output relays: steady white
        • Ethernet: flashing white
      • Button: (1) Factory-reset
      • Digital input:
        • (8) Inputs for request-to-exit devices
        • (8) Inputs for door position sensors
        • (1) Emergency
      • Dry output relay:
        • (8) Lock terminals (12V or Dry)
        • (4) AUX terminals for advanced setup (Chime/Siren/Door opener)
      • Powered output relay:
        • Lock: 12V DC, 1A/ Dry
        • Aux: Dry only
      • Operating environment: Indoor use only
      • Ambient operating temperature: 0 to 40° C (32 to 104° F)
      • Ambient operating humidity: 5 to 95% noncondensing
      • Software information: The software version of a product can be checked at https://unifi.ui.com
      • UL 294 level:
        • Destructive attack: Level I
        • Line security: Level I
        • Endurance: Level I
        • Standby power: Level I
      • UL 294 statement:
        • Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
        • The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
      • PoE cabling requirements:
        • Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
        • The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable.
      • CAN/ULC-60839-11-1 Grade: Grade assignment: I
      • Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
      • Document number, and issue date and/or revision level: EAH-8, Ver 01
    • LED
      • System:
        • Steady blue: adopted, device is ready
        • Steady white: pending adoption
        • Blinking white/blue: upgrading firmware
        • Breathing white: system initiating
    • Software
      • Management application: UniFi Access: Version 1.22.17 and later

    Datasheet

    PDF File Ubiquiti Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.
