Ubiquiti UVC-AI-Theta-Pro UniFi Video Camera AI Theta Pro
Product Highlights
Model#: UVC-AI-Theta-Pro
Sku: IT5104
MSRP: $386.00
In Stock
Your Price: $386.00
MODEL: UVC-AI-Theta-Pro
UniFi Protect AI Theta Pro Security Camera System

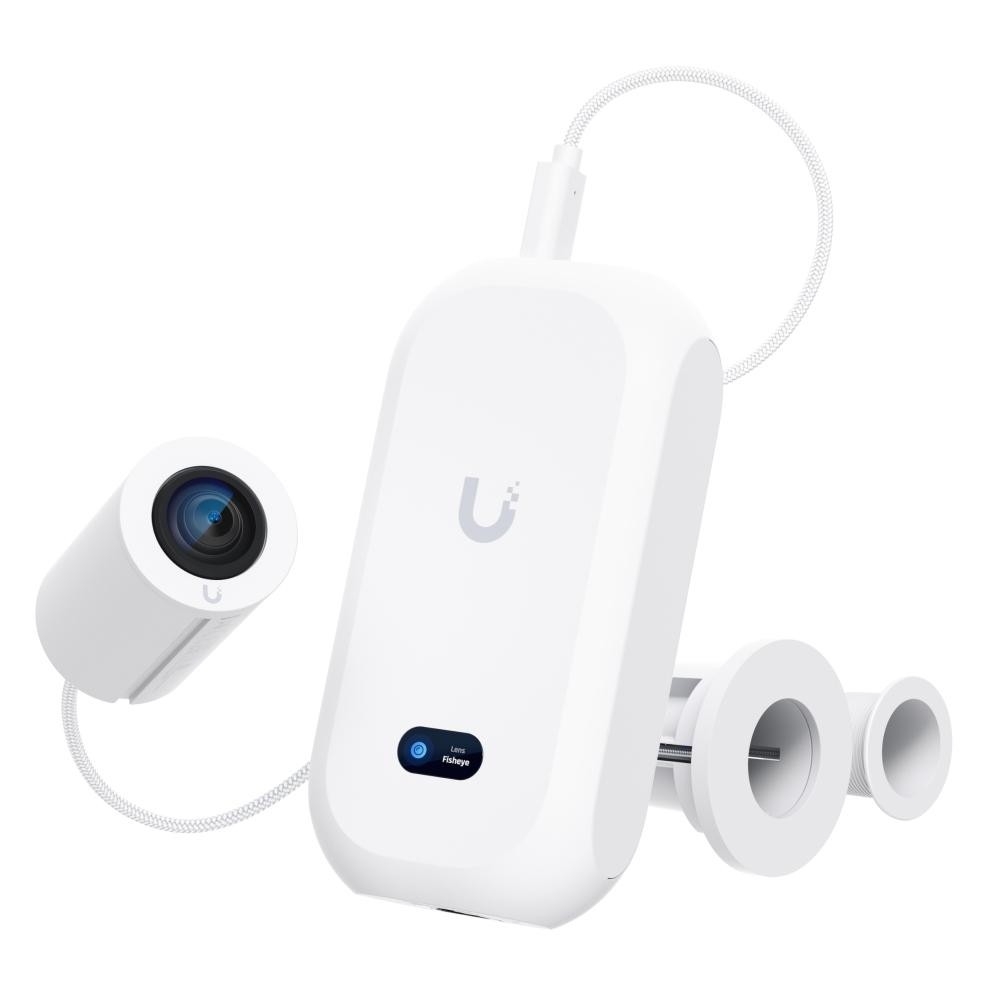

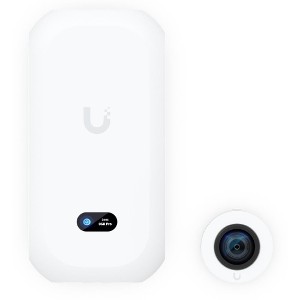

AI Theta Pro is a complete set equipped with a discreet camera and controller. The camera has an ultra-wide-angle lens with 8MP resolution, recording objects in a 360-degree range. We connect the camera to AI Theta Hub via the video port. It is also possible to connect AI Theta Audio, allowing for two-way voice communication. AI Theta Hub has a 0.96-inch color display indicating the status and is used during configuration.
The central unit is powered via the PoE port from a switch or external power supply. The controller connected to the camera allows you to register people, and the built-in audio system allows for two-way voice communication.
*License plate recognition supported with Long-Distance and Wide-Angle lenses.
Features:
- Kit includes (1) AI Theta Hub, (1) Pro 360 Lens, (1) Standard Flush Mount, and (1) Pro Flush Mount
- 4K (8MP) resolution with ultra-wide 360° view
- Exceptional image quality with superb low-light performance and enhanced dynamic range
- Advanced AI: Detect people, read license plates, and more*
- Minimal footprint with lens separated from the camera body
- Included Pro Flush Mount allows for mounting lens without access to the rear of a ceiling or wall
- PoE-powered hub that connects to lens with included cable
- Supports optional AI Theta Audio module for two-way audio
Specifications UVC-AI-Theta-Pro
| Dimensions | UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) UVC-AI-Theta-ProLens360: Ø36.6 x 58.9 mm (Ø1.4 x 2.3”) UVC-AI-Theta-ProLens360 Flush Mount: Ø54.6 x 60.4 mm (Ø2.2 x 2.4”) |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub Mount: 35 g (1.2 oz) UVC-AI-Theta-ProLens360: 58 g (2 oz) UVC-AI-Theta-ProLens360 Flush Mount: 24 g (0.8 oz) |
| Enclosure material | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-ProLens360: aluminum alloy, polycarbonate |
| Mount material | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-ProLens360 Flush Mount: polycarbonate |
| Cable jacket enclosure dimensions | 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3") |
| Cable jacket enclosure material | PVC |
| Cable length | 1 m (3.3 ft) |
| Cable diameter | 3.7 mm (0.15") |
| Cable jacket material | Woven fabric |
| Cable weight | 18 g (0.63 oz) |
| Cable connector type | Theta proprietary |
| Optics | |
| Sensor | 8MP 1/1.8" CMOS |
| Lens | Fixed focal length |
| View angle | H: 180°, V: 180°, D: 180° |
| Video | |
| Video compression | H.264 |
| Resolution | 4MP 2160 x 2160 (1:1) |
| Max. frame rate | 24 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Power supply | 5V DC, 0.5A |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Max. power consumption | 12.5W |
| Power method | PoE |
| Supported voltage range | 37—57V DC |
| Output power | 5V DC, 1A per port |
| Display | 0.96" color display |
| Button | Factory reset |
| Mounting | Wall, ceiling mount |
| Operating temperature | -20 to 40° C (-4 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Supports optional AI Theta Audio module for two-way audio (sold separately) |
| Speaker | Supports optional AI Theta Audio module for two-way audio (Sold separately) |
| Software | |
| UniFi OS application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
