U7-IW-US

Ubiquiti


Ubiquiti Networks U7-IW-US - UniFi U7 In-Wall


Model#: U7-IW-US

Sku: IT5126



MSRP: $179.99

In Stock

Your Price: $179.99






MODEL: U7-IW-US

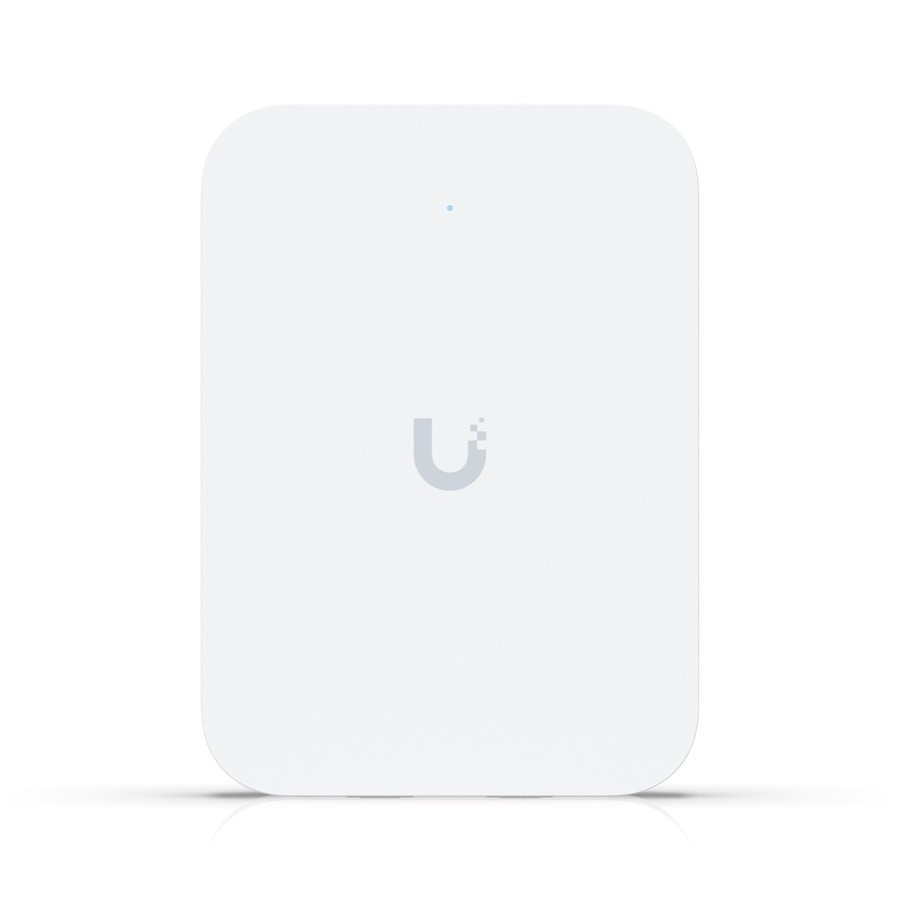

UniFi U7 In-Wall

Wall-mounted WiFi‎ 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

Features:

  • WiFi 7
  • 4 spatial streams
  • 115 m² (1,250 ft²) coverage
  • 200+ connected devices
  • Powered using PoE/PoE+*
  • 2.5 GbE uplink

Specifications U7-IW-US

Dimensions 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
Weight 400 g (0.88 lbs)
Enclosure material Polycarbonate, aluminum
Mount material Aluminum
Hardware
Networking interface (3) 1/2.5 GbE RJ45 ports
Management interface Ethernet
PoE interface (1) PoE+ input
(1) PoE output
Power method PoE
PoE+ (Required for PoE output)
Power supply UniFi PoE switch
Supported voltage range 42.5—57V DC
Max. power consumption 13W (Excluding PoE output)
Max. PoE wattage per port by PSE 12W
Max. TX power
2.4 GHz
5 GHz
6 GHz

23 dBm
24 dBm
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2 (DL/UL MU-MIMO)
2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
5 GHz
6 GHz

688 Mbps (BW40)
4.3 Gbps (BW240*)
Antenna gain
2.4 GHz
5 GHz
6 GHz

4 dBi
8 dBi
LEDs White/blue
Button Factory reset
Mounting Wall (Included)
Ambient operating temperature -30 to 40° C (-22 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 200+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240*)
Application Requirements
UniFi Network Version x and later
UniFi OS iOS™ version 10.20.0 and later
Android™ version 10.21.3 and later iOS™ version 10.20.0 and later
Android™ version 10.21.3 and later
