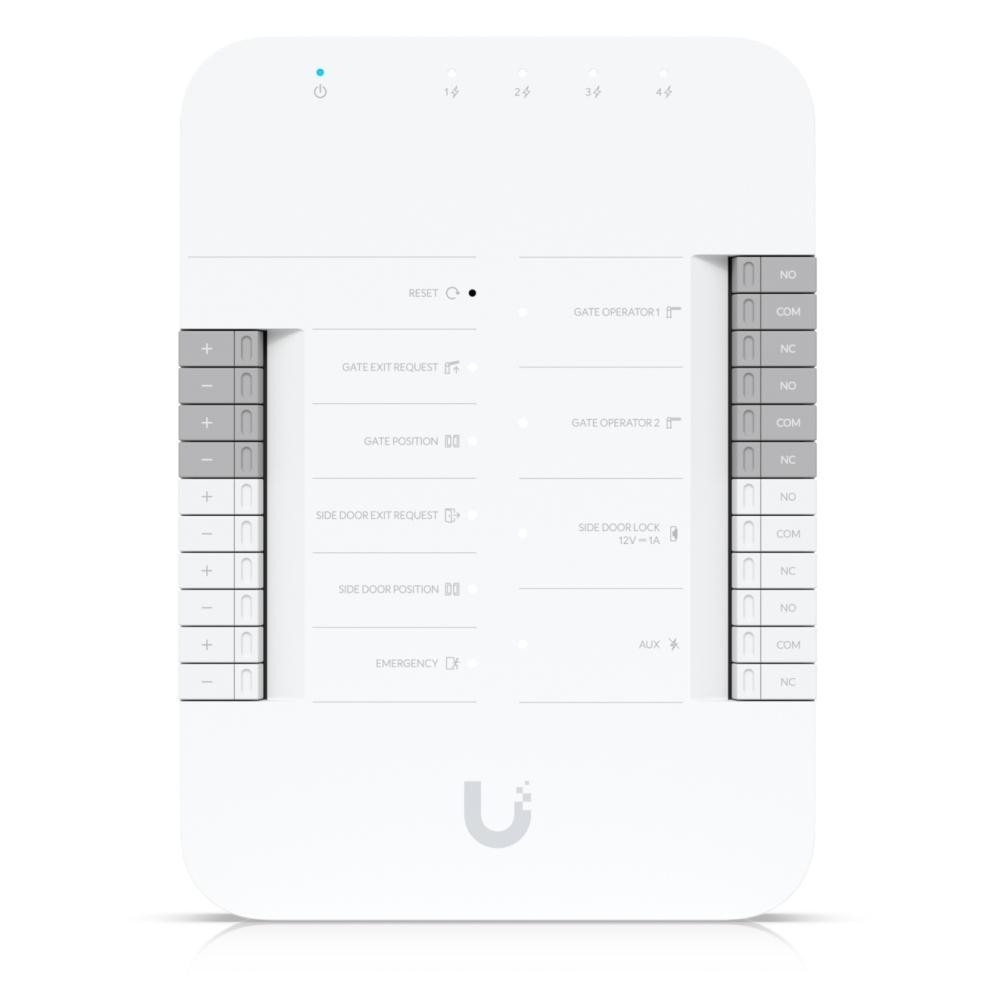

Ubiquiti UA-Hub-Gate UniFi Access Gate Hub

Your Price: N/A

MODEL: UA-Hub-Gate

An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.

Features:

(2) Gate operator terminals (dry)
(1) Lock terminal (12V) for side door
(1) AUX terminal for an external siren
(5) Additional inputs (sensors and emergency)
License plate unlock (when paired with AI Camera)
Connect and power using PoE++
Connect up to four UniFi Access readers or UniFi Protect cameras
Optional LPR Cameras: UVC-AI-Turret, UVC-AI-LPR, UVC-AI-Dome, UVC-AI-DSLR, UVC-AI-Pro, UVC-AI-Theta, UVC-AI-Bullet

Mechanical
Dimensions	175 x 126 x 26 mm (6.9 x 5 x 1")
Weight	460 g (1 lb)
Enclosure material	Polycarbonate
Mounting	Din-rail (Included)
Hardware
Networking interface	(5) 10/100/1000 Base-T
Power method	PoE++
Max. power consumption	Without PoE output: 22W With PoE output: 50W
PoE input	50V DC, 1A
PoE output	PoE passthrough, (4) PoE, 50V DC, Max. 28W
LEDs	White/blue (Learn more)
Button	(1) Factory-reset
Digital input	Gate exit request, gate position, side door exit request, side door position, emergency
Dry output relay	(2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A
Output relay	Side door lock: 12V DC, up to 1A
PoE cabling requirements	Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
Operating environment	Indoor use only with device itself Outdoor use with waterproof junction box
Ambient operating temperature	-30 to 60° C (-22 to 104° F)
Ambient operating humidity	5 to 90% noncondensing
Certifications	CE, FCC, IC
