CRS354-48P-4S+2Q+RM

Mikrotik

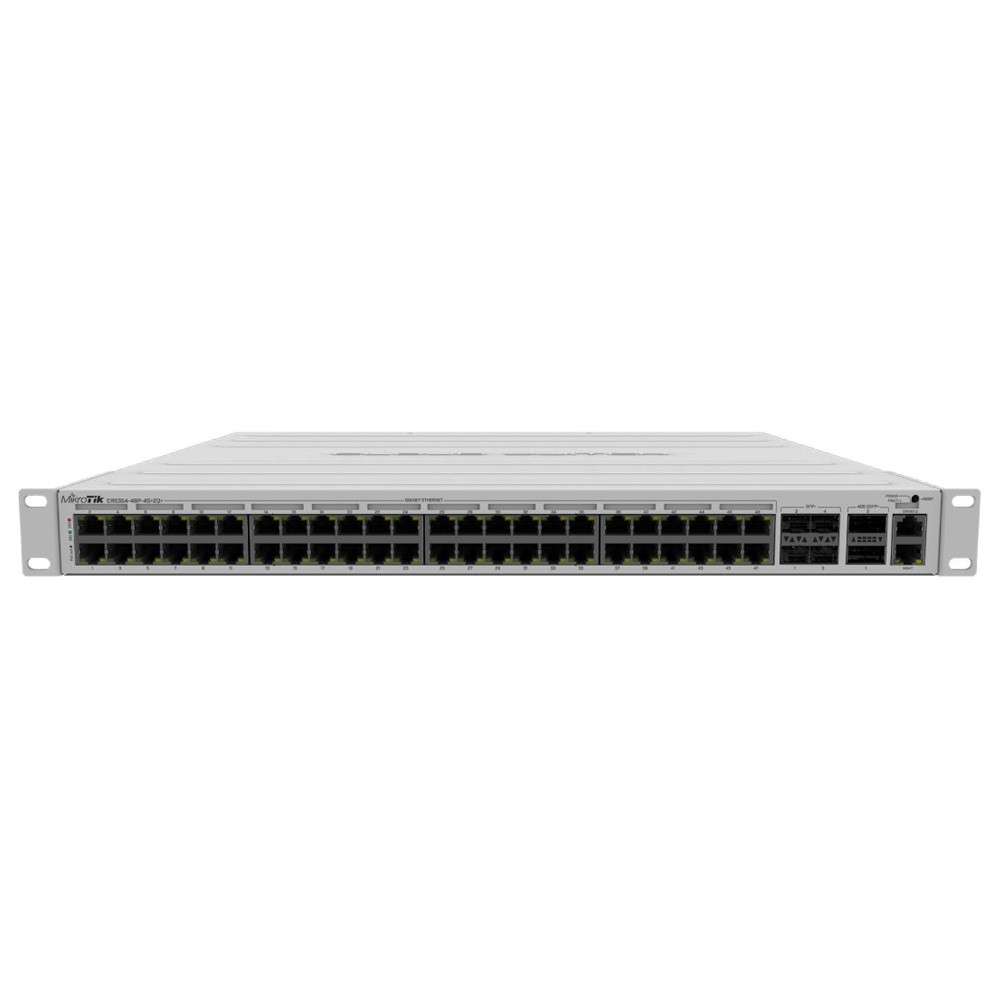

Mikrotik CRS354-48P-4S+2Q+RM Switch 48x Gbit PoE-Out Ports 4x 10G SFP+ Ports and 2x 40G QSFP+ Ports


Product Highlights
  • The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments
  • This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices
  • All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups
  • The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps
  • We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management

    • Model#: CRS354-48P-4S+2Q+RM

    Sku: IT5134

    Out of stock

    Your Price: N/A


    If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.

    This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.

    CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.

    The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

    Specifications
    Product code    CRS354-48P-4S+2Q+RM
    Architecture    MIPSBE
    CPU    QCA9531
    CPU core count    1
    CPU nominal frequency    650 MHz
    Dimensions    443 x 382 x 44 mm
    License level    5
    Operating System    RouterOS
    Size of RAM    64 MB
    Storage size    16 MB
    Storage type    FLASH
    Tested ambient temperature    -20°C to 60°C

    Powering
    Number of AC inputs    1
    AC input range    100-240
    Max power consumption    800 W
    Max power consumption without attachments    85 W

    PoE-out
    PoE-out ports    Ether1-Ether48
    PoE out    802.3af/at
    Max out per port output (input < 30 V)    1000 mA
    Max out per port output (input > 30 V)    570 mA
    Total output current    27A at 26V OR 13.2A at 53V
    Total output power    700W

    Ethernet
    10/100 Ethernet ports    1
    10/100/1000 Ethernet ports    48

    Fiber
    SFP+ ports    4
    Number of 40G QSFP+ ports    2

    Peripherals
    Serial port    RJ45

    Other
    CPU temperature monitor    Yes
    Current Monitor    Yes
    PCB temperature monitor    Yes
    Voltage Monitor    Yes
