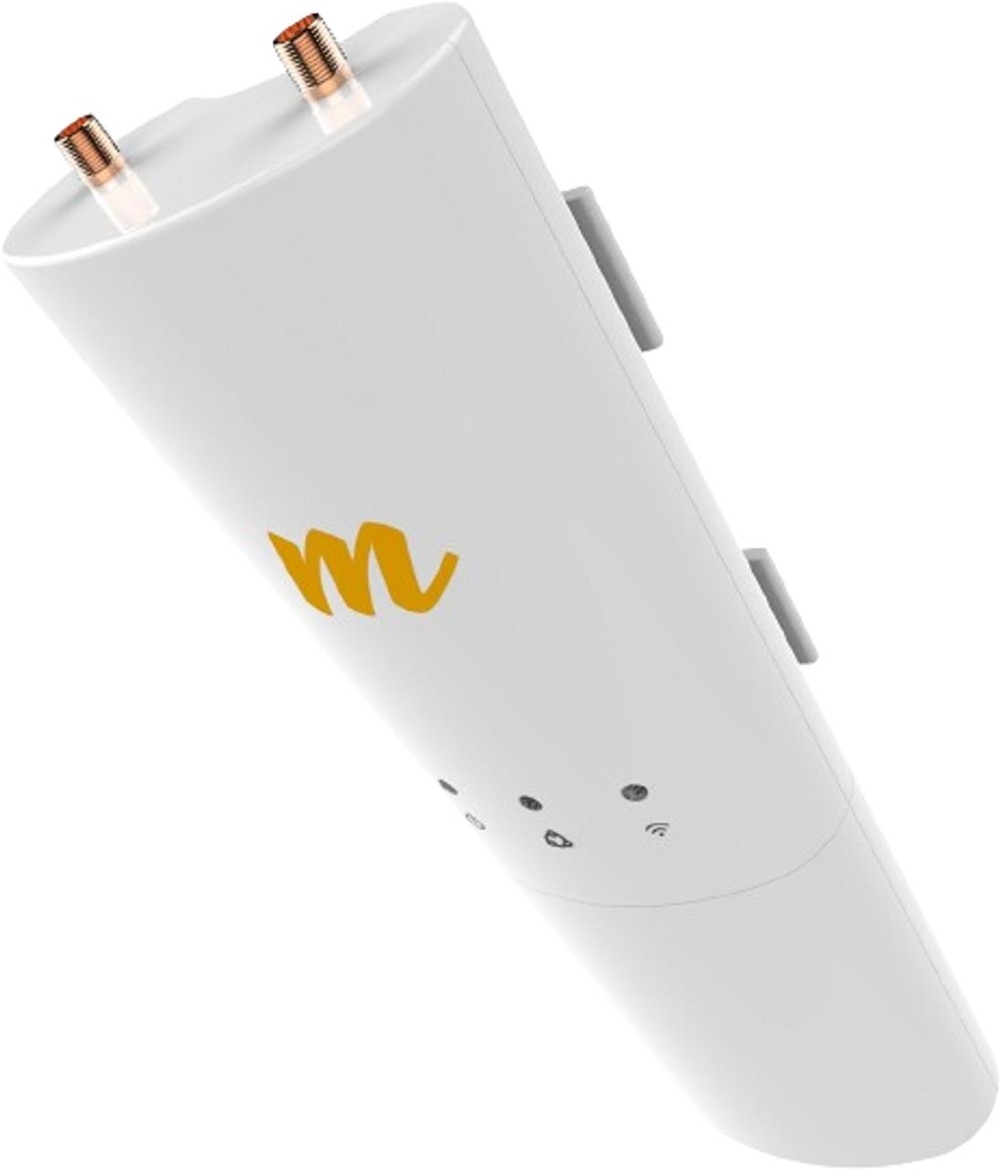

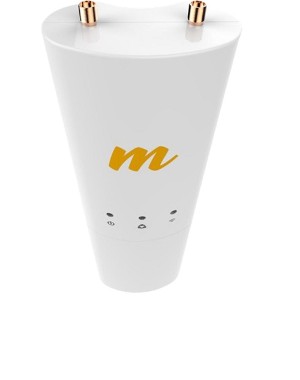

Mimosa C5c EF Point-to-Point Backhaul & Point-to-Multipoint Client Radio 5Ghz


Model#: 100-00018-01

Sku: IT5029



MSRP: $209.00

In Stock

Your Price: $209.00






C5c Point-to-Point Backhaul & Point-to-Multipoint Client Radio 4.9–6.4 GHz (PTP/PTMP*)

C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 700 Mbps of TCP throughput.

  • Flexible Antenna Options
    • Connect to virtually any dual polarization antenna to custom engineer longer distance client links.
    • Dual RP-SMA connectors for easy cabled antenna connectivity.
    • It can be mounted to any pole via hose clamps or easily clipped onto antennas supporting compatible clip-on mounting bracket systems.
  • PTP Backhaul Links
    • The C5c provides extreme price/performance for PTP backhaul links in a small form factor.
    • Wide frequency range support allows avoidance of crowded 5 GHz spectrum bands.
    • Where regulations allow, long distances are enabled with high system power and flexible antenna options.
  • SRS Client
    • Offers client-side support for Mimosa’s proprietary Spectrum Reuse Synchronization (SRS) technology.
    • This ensures each client device precisely receives and transmits under the timing control of the access point and can dynamically request upstream bandwidth.
    • As opposed to alternative (fixed) timeslot protocols, upstream bandwidth and Latencies are allocated on demand, which enables significantly higher overall upstream network bandwidth utilization.
  • Product code: C5c
    • Performance
      • Max Throughput: PTP/PTMP: 700 Mbps IP (866 Mbps PHY)
      • Wireless Protocols:
        • WiFi Interop
        • Mimosa SRS
      • Modes:
        • PTMP Client
        • PTP Backhaul
    • Radio
      • MIMO and Modulation: 2x2:2 MIMO OFDM up to 256-QAM
      • Bandwidth**: 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS; Tunable to standard Wi-Fi channels for Wi-Fi Interop
        • **4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)
      • Frequency Range:
        • PTMP: 4900–6400 MHz*
          • Restricted by country of operation ‘new’ US/FCC 5600-5650 MHz support
          • *Extended PTMP frequency, above 6.2 GHz, requires A5/A5c access point with P/N 100-000xx-01
        • PTP: 4900–6400 MHz
      • Max Output Power: 27 dBm
      • Sensitivity (MCS0):
        • -87 dBm @ 80 MHz
        • -90 dBm @ 40 MHz
        • -93 dBm @ 20 MHz
    • Power
      • Max Power Consumption: 12.9 W
      • System Power Method: Passive PoE (24-56VDC)
      • PoE Power Supply:
        • Passive PoE compliant, 48-56 V Power over Ethernet supply (not included)
        • Power Supply: 502-00025
    • Physical
      • Mounting: Single pole strap
      • Connector Type: (2) RP-SMA (female)
    • Features
      • Gigabit Ethernet: 10/100/1000-BASE-T
      • Management Services:
        • Mimosa cloud monitoring and management
        • SNMPv2 & Syslog legacy monitoring
        • HTTPS
        • HTML5 based web UI
      • Smart Spectrum Management:
        • Active scan monitors/logs ongoing RF interference across channels with no service impact; Dynamic auto-optimization of channel and bandwidth use
      • VLANs:
        • Per subscriber VLAN; Q-in-Q, triple tagging; Management VLAN
      • QoS:
        • Supports 4 pre-configured QoS levels

Datasheet

PDF File Mimosa C5c EF Point-to-Point Backhaul & Point-to-Multipoint Client Radio 5Ghz
